Sku : Div-R-20-square-10-20-etl

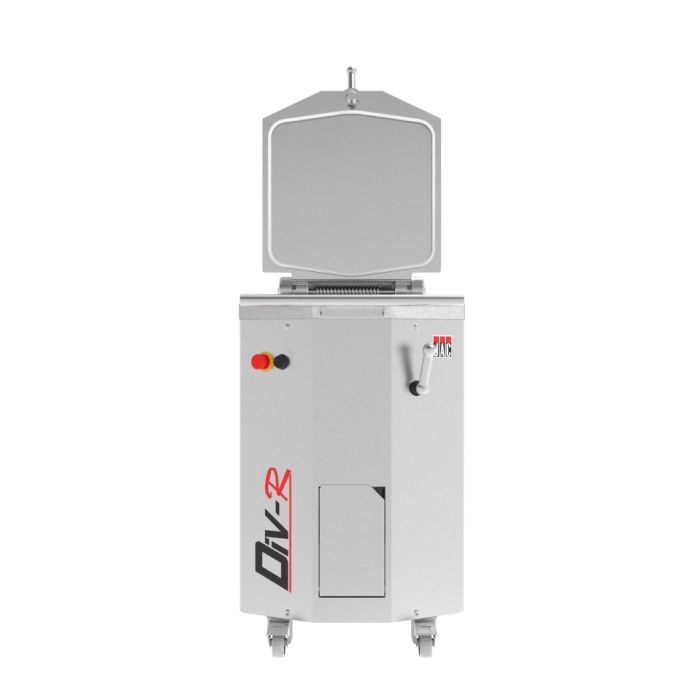

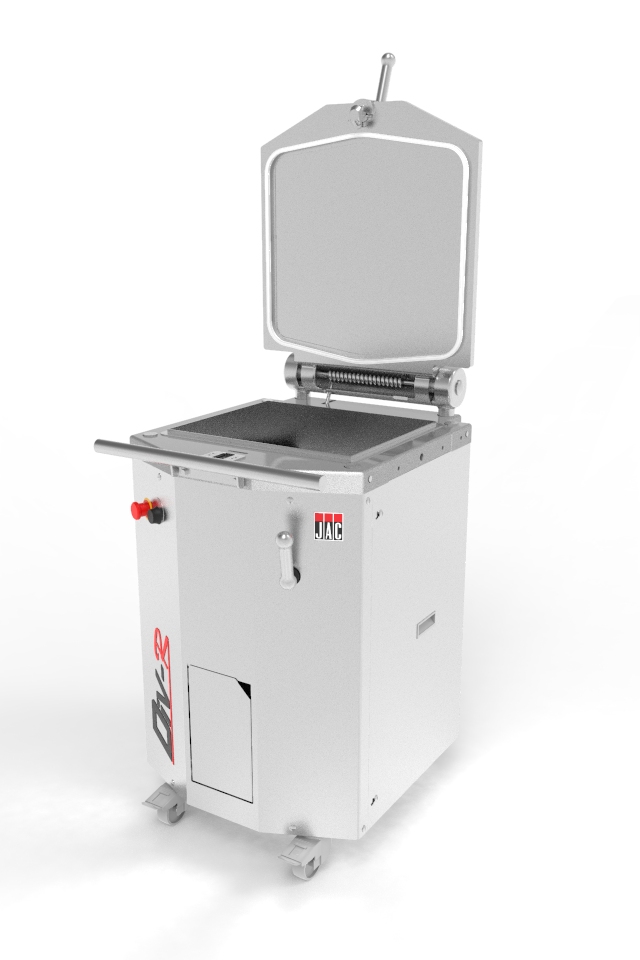

The DIV-R square is able to divide into 20 or into 10 equal parts. Furthermore, it is equipped as standard with flour recovery technology and a pressure setting facility. Dividing being a challenging stage for machines, JAC has made ambitious technical choices: reinforced piston, cast aluminium floats with EASY CLEAN treatment, Start and Stop system, sharpened stainless-steel knives, square stainless-steel tank. These advantages make it a benchmark machine on the bakery market.
This extremely tough treatment is impregnated into the material; its exceptional non-stick qualities improve over time.
Includes automatic blade retraction for easy maintenance.
Prevents de-gassing of the different types of dough.
If the ETL Listed mark has a "US" to the bottom right, it has passed U.S. product safety standards. If it has a "C" to the bottom left, it has passed Canadian product safety standards. If the ETL mark displays both identifiers, it meets both standards.
NEMA L15-20P
JAC is a member of these different associations
10 / 20 divisions Allows working in 10 divisions (230mm x 75mm) or 20 divisions (115mm x 75mm)
This extremely tough treatment is impregnated into the material; its exceptional non-stick qualities improve over time.
Includes automatic blade retraction for easy maintenance.
Prevents de-gassing of the different types of dough.
If the ETL Listed mark has a "US" to the bottom right, it has passed U.S. product safety standards. If it has a "C" to the bottom left, it has passed Canadian product safety standards. If the ETL mark displays both identifiers, it meets both standards.
NEMA L15-20P
JAC is a member of these different associations
10 / 20 divisions Allows working in 10 divisions (230mm x 75mm) or 20 divisions (115mm x 75mm)
|

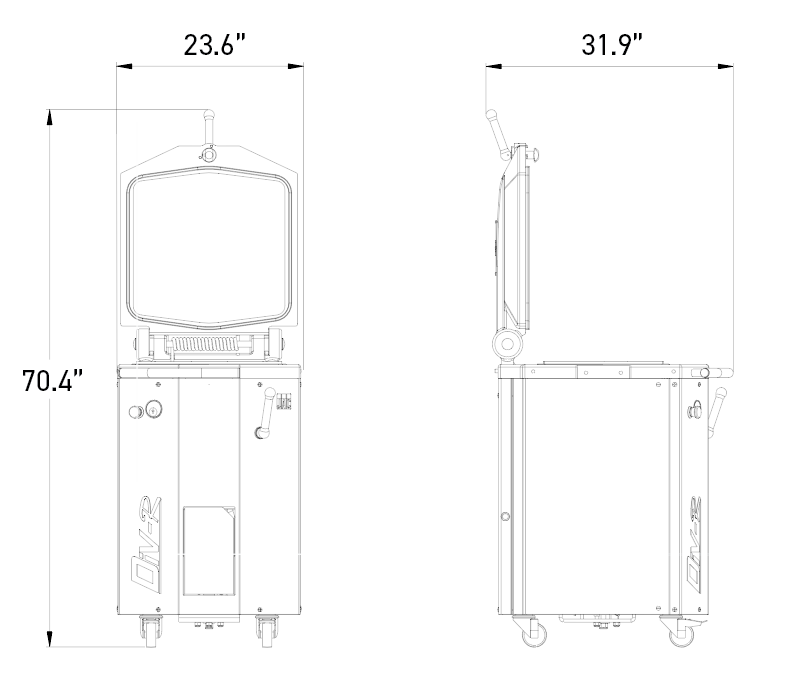

Dimensions of square tanks (L x W x H) in in |
18.11” x 15.2” x 4.9” |
|
Dimension of cuts of square tanks (LxW) in in |
4.5” x 2.95” |
|
Max/min weight of dough pieces in oz (dough dependent) |
5.3 / 33.5 |
|
Chamber capacity in lbs |
41.9 |
|
Min / max weight in oz in 10-division position |
10.6 / 67 |
|
Flour splash prevention system |
• |
|
10/20 divisions |
• |
|
Automatic knife retraction |
• |
|
Adjustable pressure |
• |
|
Flour recovery |
• |
|
Protection handle |
• |
|
Motor power in kW |
1.8 |
|
Type of motor |
3ph/208V/60Hz/11A |
|
Net weight in lbs |
584 |
|
Easy Clean treatment |
• |
