Sku : Tradiform-10-20-ETL

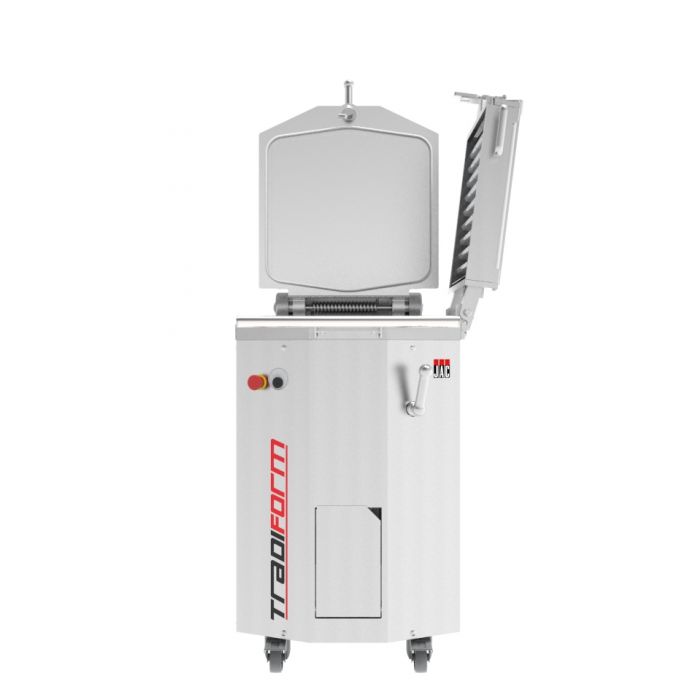

Tradiform is perfect combination of an in-tank divider and grid divider. Perfectly suited to all types of dough, it will enable you to divide up to 19 kg in tank into 20 or into 10 equal parts or 5 kg via a grid. It is equipped with a pressure plate and a grid holder to benefit from the very wide range of over 100 grids, from which you are bound to find THE right mould for your product. JAC has made ambitious technical choices: reinforced piston, cast aluminium floats with EASY CLEAN treatment, Click&Cut, Start and Stop system, sharpened stainless-steel knives, square stainless-steel tank, flour recovery system, pressure setting facility. These advantages make it a benchmark machine on the bakery market. It can also be equipped optionally with the Easyflour flour dispenser and the automatic Fullmatic system.
This extremely tough treatment is impregnated into the material; its exceptional non-stick qualities improve over time.
Includes automatic blade retraction for easy maintenance.
Prevents de-gassing of the different types of dough.
For optimum hygiene and easy maintenance
Automatic grid holder locking system On closing, the grid holder locks automatically and starts the automatic dividing cycle.
Quick grid changing system (JAC patent)
Prevents flour dispersal.
NEMA L15-20P
JAC is a member of these different associations
10 / 20 divisions Allows working in 10 divisions (230mm x 75mm) or 20 divisions (115mm x 75mm)
This extremely tough treatment is impregnated into the material; its exceptional non-stick qualities improve over time.
Includes automatic blade retraction for easy maintenance.
Prevents de-gassing of the different types of dough.
For optimum hygiene and easy maintenance
Automatic grid holder locking system On closing, the grid holder locks automatically and starts the automatic dividing cycle.
Quick grid changing system (JAC patent)
Prevents flour dispersal.
NEMA L15-20P
JAC is a member of these different associations
10 / 20 divisions Allows working in 10 divisions (230mm x 75mm) or 20 divisions (115mm x 75mm)
|

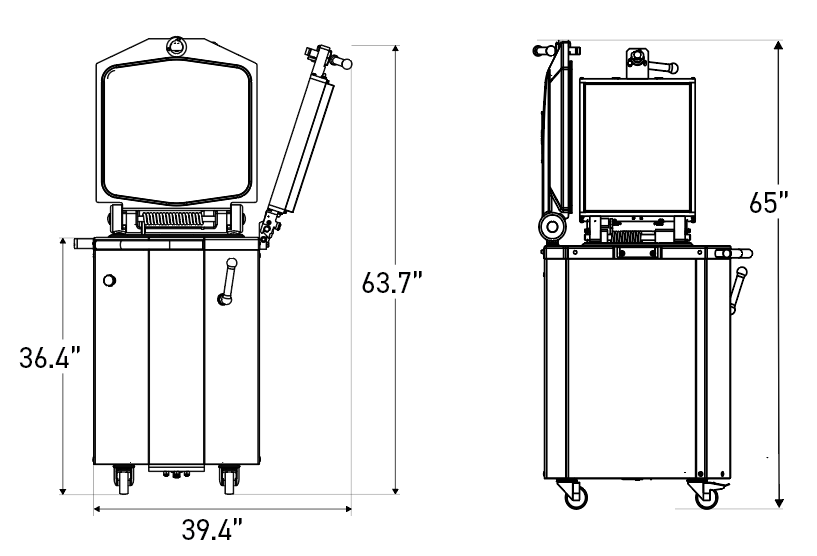

Dimensions of tanks (L x W x H) in in |
18.1” x 15.2” x 4.9” |
|
Dimensions of heads (L x W) in in |
4.5” x 2.9” |
|
Min/max weight of dough pieces in oz |
5.3 / 33.5 |
|
Tank capacity in lbs |
41.9 |
|
10/20 divisions |
• |
|
Pressure plate |
• |
|
Automatic knife retraction |
• |
|
Flour splash prevention system |
• |
|
Supplied with a grid frame |
• |
|
Motor power in kW |
1.8 |
|
Type of motor |
3ph/208V/60Hz/11A |
|
Net weight in lbs (including frame) |
628.3 |
